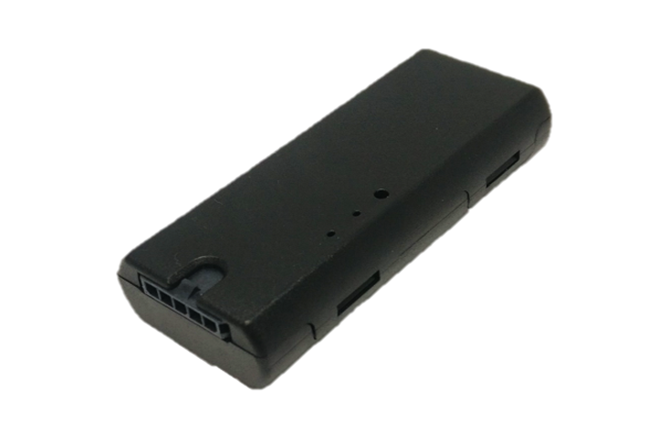

StarLink EV is a telematics solution, specially designed for electric vehicles and assets in the micro-mobility market.
StarLink EV offers a small-size solution with advanced features such as CAN and safety, making it a great solution for electric vehicles and assets with an operation voltage of under 100V, such as scooters, bikes, etc.
StarLink EV is best suited for applications such as vehicle sharing, battery operation monitoring and micro-mobility fleet management.
| Cellular | GPRS Quad-Band 900/1800/850/1900 + optimized embedded antenna |
| Location | GPS/GLONASS/GALILEO, Active antenna, Sensitivity -165 dB, NMEA0193, Acquisition(normal): cold <34s, warm <34s, hot <1s, accuracy: 2.5m CEP Embedded optimized antenna |
| Communication | Text messages, TCP/IP over GPRS |
| Connectors | 5 pin Molex connector |
| I/O Ports | 1 |
| Dedicated Ports | Ignition port (not available in CAN variant) |
| Power Supply | 6-100VDC |
| Backup Battery | Rechargeable, 3.6v, 350mAh(Li-ion) |
| Configuration / Firmware Update | OTA/Via Standard PC USB Port, parameters setup, software programming |
| Data Logger | 19,000 to 25,000 messages (depending on the variant) |
| Operating Temperature | -20 to 70° C |
| Storage Temperature | -40 to 85° C |
| Dimensions | 7.5cm x 3cm x 1.7cm |
| Weight (NET) | 38g |
| Max. Relative Humidity | 90(±5)% |
